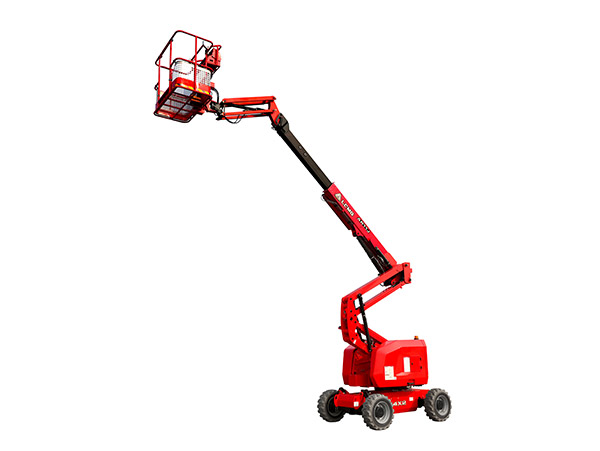

51ft LGMG AR16J(AR52J) Articulated Boom Lift

Available Now

Platform Height

15.7

m

/

51

ft

Working Height

17.7

m

/

58

ft

Lift Capacity

230

kg

Fuel Type

Diesel

Download Spec Sheet

Models	AR16J	AR52J
Measurements
Work Height Max.	17.7m	58'1''
Platform Height	15.7m	51'6''
Horizontal Outreach	9.39m	30'10''
Up and Over Height	7.56m	24'10''
A-Stowed Length	7.56m	24'10''
Length-Transport (jib tucked)	6.17m	20'3''
B-Stowed Width	2.31m	7'7''
C-Stowed Height	2.17m	7'1''
Height-Transport	2.57m	8'5''
D-Platform Size Length	1.83m	6'
E-Platform Size Width	0.76m	2'6''
Platform Capacity	230kg	507 lbs
Wheelbase	2.06m	6'9''
Ground Clearance	0.36m	1'2''
Productivity
Max. Platform Occupants	2
Drive Speed-Stowed	6.1km/h	3.8mph
Drive Speed-Raised	0.8km/h	0.5mph
Gradeability-Stowed	45%
Turnable Rotation	355°
Turning Radius-Inside	1.94m	6'4''
Turning Radius-Outside	4.41m	14'6''
Tires Type	RT Foam-filled
Tires Size	315/55D20
Ground Pressure, Tyres	624.2 kPa	90.5 psi
Power
Power	Deutz D2.9L4 36.4kw/48.8hp / Kubota V2403 36kw/48.2hp
Fuel Tank Capacity	65L	17.2gal
Hydraulic System
Hydraulic Oil Capacity	130L	34.3gal
Weight
Machine Weight(CE)	8180kg	18034 lbs
